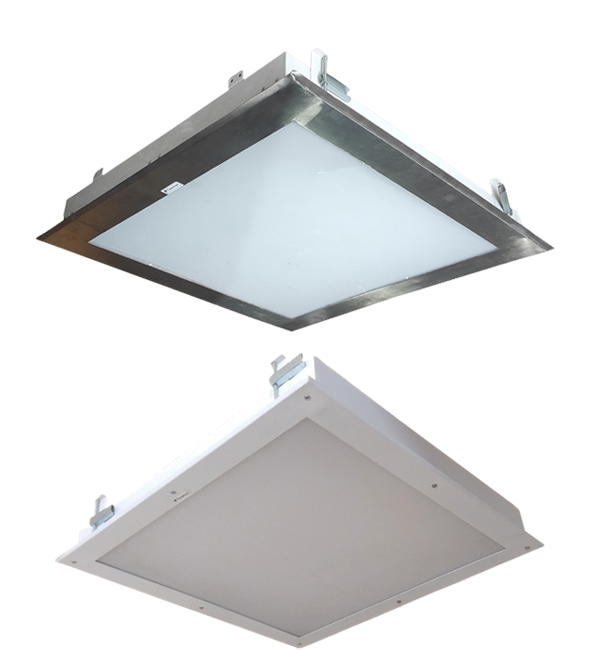

Eetamax Clara Cleanroom Lights

Eetamax Clara cleanroom light is reliable, robust, durable, and with low maintenance while at the same time delivering uniform, glare-free light distribution. Bottom Openable Clean room lights that are suitable for use in clean room areas compliant with standard ISO 14644-1 grade ISO 8 (FED STD eq Class 100,000) clean room standards.

Features

Aesthetically designed housing made from CRCA
Electrostatically powder coated for excellent corrosion resistance
Bottom frame with powder coated finish or in SS 304 Grade in mirror finish
Milky acrylic diffuser sealed with non-hygroscopic VHB gasket to ensure moisture proof and dust proof performance
Ingress Protection IP54 / IP65
Impact Resistant IK O7
Removable LED driver for easy maintenance from top side
Two way connectors for loop-in loop-out cable connection
Suitable for slab mounting and walkable modular panels
Suitable for Class 10,000 to Class 1,00,000 applications

Applications

Industrial Sheds
Food Production
Sports Halls
Heavy Industry
Warehouses etc.

EETAMAX CLARA 2X2 RECESSED CLEANROOM - BOTTOM OPENABLE LIGHTS

Luminaire Specification
Available Variant	25W / 30W / 35W / 40W / 50W / 60W / 80W / 100W
System Efficacy (Lm/Watt)	>100 lm/W
L70 Life	>54,000 Br.hrs
Operating Temperature	From 0° to +50° C
EMI / EMC	EMI / EMC Compliance (Optional)
LED Lamp
Light Source	SMD LED
Lamp Efficacy	>150 lm/W
Colour Temperature	1700K-6500K, @590nm Sodium Light Also Available
CRI	>70
Certification/Report	LM80, Photo Biologically Safe
Beam Angle	120°

LED Driver Specification
Type of Driver	Constant Current
Input Voltage Range	150 VAC ~ 265 VAC
Frequency Range	50 Hz
Power Factor	> 0.97
Total Harmonic Distortion	< 10 %
Surge Protection	4 kV
Protection	Surge Protection, Output Short Circuit, Overload Protection, Over Voltage Protection, Thermal Protection, Mis- Wiring Protection
