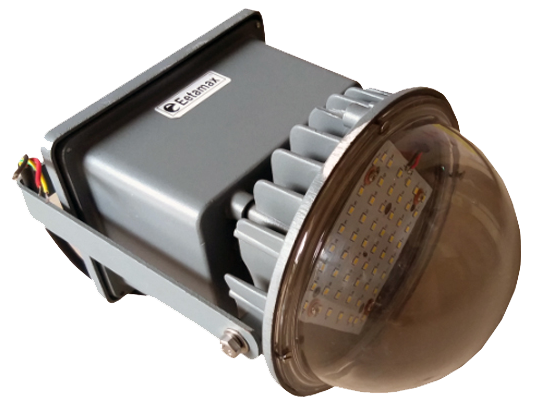

Weatherproof Well Glass

We are Manufacturer, Supplier and Exporter of Indoor / Outdoor Lighting. This product is also called as WellGlass, LED Well Glass. Our setup is situated in Ahmednagar, Maharashtra, India. We provide best quality LED Lightning solutions for Industries.

Eetamax weather proof well glass is the most versatile general purpose industrial lighting product used for indoor as well as outdoor lighting applications. Made in aluminum die cast, powder coated, lP65 housing.
Available in COB as well as SMD technology. Optional diffused lens also available.


Features

  • Aesthetically elegant & Robust design
  • Excellent thermal design for long life
  • Delivers Uniform Light distribution
  • Inbuilt Electronic Protections

Applications

  • Food industries
  • Pharmacy industries
  • Chemical industries
  • Cement industries
  • Polymer industries
Weatherproof Well Glass


Mechanical Specification

Fixture Housing

Aluminium Die Casting with separate Driver Box

Diffuser Closure

Polycarbonate Clear / Milky dome

IP & IK

IP67

Luminaire Specification
Available Variants 30W / 40W / 50W / 60W
System Efficacy ( Lm/W ) >140 lm/W
L70 Life >54,000 Br.hrs

Operating Temperature

From -20° to +50° C

LED lamp

Light Source

SMD

Lamp Efficacy

>150 lm/W

Colour Temperature

6500K (Other CCT Available on request)
CRI >80
Certification / Report
LM80, Photo Biologically Safe
Beam Angle
120°
LED Driver Specification

Type of Driver

Constant Current

Input Voltage Range

150VAC ~ 265VAC

Frequency Range

50 Hz

Power factor > 0.97
Total Harmonic Distortion < 10 %
Surge Protection 4 kV
Protection Surge Protection
Output Short Circuit
Overload Protection
Over Voltage Protection
Thermal Protection
Mis-Wiring

LINEAR STANDARD PARAMETERS
Sr. System Wattage Lumen Package Diameter (mm) Fixture Height (mm) Weight (Kg)
1 30W 4200 lm 160 230 1.5 Kg.
2 40W 5600 lm 160 230 1.5 Kg.
3 50W 7000 lm 160 320 1.5 Kg.
4 60W 7800 lm 160 230 1.5 Kg.
