Eetamax Flora Flameproof Lights
Eetamax Flora Flameproof Lights are the most ideal solution for illumination in hazardous environments in industries like petroleum refineries, offshore platforms, chemical processing plants, and areas of flammable dust and gases. Certified by CIMFR and PESO as II A, II B, as well as II C category, these products can withstand the continuous presence of flammable gases in the environment. With high efficacy of >120 lm/W, Eetamax Flora lights save upto 55% electricity against conventional explosion proof lights.
We are Manufacturer, Supplier and Exporter of Flameproof LED Fixtures. This product is also known as Flameproof Fixtures, Flameproof Lights. Our setup is situated in Ahmednagar, Maharashtra, India. We provide best quality LED Lightning solutions for Industries.
IP66
IK08
>120 lm/W
| Mechanical Specification | |
Fixture Housing |
LM6 Aluminium Alloy PDC for optimum thermal management with Eye bolt & Cradle arrangement |
Diffuser Closure |
Borosilicate Glass Lens |
IP |
IP66 |
| Certification | CIMFR & PESO |
| Zones | Zone 1,2 & Zone 21,22 |
| Gas Group | IIA, IIB & IIC |
| Luminaire Specification | |
| Available Variants | 30W / 40W / 60W / 80W / 100W / 120W / 150W / 200W |
| Total Lumens | 3600 lm / 4800 lm / 7200 lm / 9600 lm / 12000 lm / 18000 lm / 24000 lm |
| System Efficacy (lm/W) | >120 lm/W |
L70 Life |
>60,000 Br.hrs |
Temperature Class |
T6 (Best temp. Class of <85°C) |
Operating Temperature |
From -20° to +50° C |
| LED Driver Specification | |
Type of Driver |
Constant Current |
Input Voltage Range |
180 VAC ~ 300 VAC | 100 VAC ~ 305 VAC |
Frequency Range |
50 Hz / 60 Hz |
| Power factor | > 0.97 |
| Total Harmonic Distortion | < 10 % |
| Surge Protection | 4 kV / 6kV |
| Protection | Surge Protection Output Short Circuit Overload Protection Over Voltage Protection Thermal Protection |
| LED lamp | |
Light Source |
COB |
Lamp Efficacy |
>150 lm/W |
Colour Temperature |
6500K (Other CCT Available on Request) |
| CRI | >80 |
| Certification / Report |
LM80, Photo Biologically safe |
STANDARD PARAMETERS

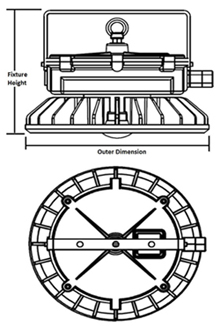

Mechanical Drawing |
Sr. |
System Wattage |
Total Lumens |
Outer Dimension (mm) |
Fixture Height (mm) |
Weight (Kg) |
1 |
30W |
3600 lm |
255 mm |
195 mm |
3.2 kg |
|
2 |
40W |
4800lm |
||||
3 |
60W |
7200 lm |
||||
4 |
80W |
9600 lm |
285 mm |
215 mm |
5.5 kg |
|
5 |
100W |
12000 lm |
||||
6 |
120W |
14400 lm |
||||
7 |
150W |
18000 lm |
||||
8 |
200W |
24000 lm |
