EELS 25W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F > 0.98 & THD < 10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

25 Watts

INITIAL LUMENS

3000 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

 50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

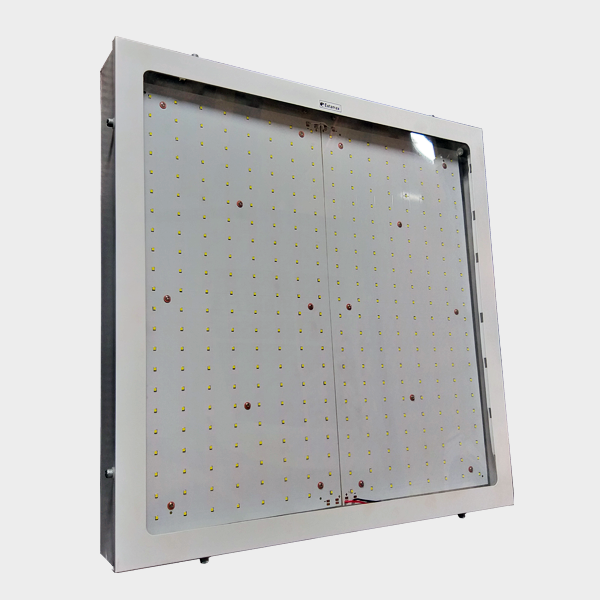

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 3000 lm, luminaire wattage 25 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 40W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

40 Watts

INITIAL LUMENS

4800 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 4800 lm, luminaire wattage 40 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 50W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

50 Watts

INITIAL LUMENS

6000 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 6000 lm, luminaire wattage 50 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 60W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

60 Watts

INITIAL LUMENS

7200 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 7200 lm, luminaire wattage 72 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 80W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

80 Watts

INITIAL LUMENS

9600 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 9600 lm, luminaire wattage 80 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 100W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

100 Watts

INITIAL LUMENS

12000 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 12000 lm, luminaire wattage 100 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 120W 2x2 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

120 Watts

INITIAL LUMENS

14400 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

surface-mounted-clean-room-fixtures-2x2
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 14400 lm, luminaire wattage 120 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 40W 4x1 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

40 Watts

INITIAL LUMENS

4000 Lumens

LUMENS / WATT

100 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

img-not-available1
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 4000 lm, luminaire wattage 40 W, luminous efficiency of luminaire 100 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 60W 4x1 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

60 Watts

INITIAL LUMENS

6000 Lumens

LUMENS / WATT

100 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

img-not-available1
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 6000 lm, luminaire wattage 60 W, luminous efficiency of luminaire 100 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 80W 4x1 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

80 Watts

INITIAL LUMENS

8000 Lumens

LUMENS / WATT

100 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

img-not-available1
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 8000 lm, luminaire wattage 80 W, luminous efficiency of luminaire 100 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 100W 4x1 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

100 Watts

INITIAL LUMENS

10000 Lumens

LUMENS / WATT

100 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

img-not-available1
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 10000 lm, luminaire wattage 100 W, luminous efficiency of luminaire 100 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 120W 4x1 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

120 Watts

INITIAL LUMENS

12000 Lumens

LUMENS / WATT

100 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

img-not-available1
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 12000 lm, luminaire wattage 120 W, luminous efficiency of luminaire 100 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.

EELS 20W 1x1 CR PC/TG - Surface


TECHNICAL PARAMETERS

POWER SUPPLY

Constant current with P.F >0.98 & THD <10%

INPUT VOLTAGE

100 V - 300 V AC, 50 Hz

LIGHT SOURCE

SMD LED

TOTAL WATTAGE

20 Watts

INITIAL LUMENS

2400 Lumens

LUMENS / WATT

120 Lm / Watt

COLOUR TEMPERATURE

3000K – 6500K

CRI

>80

LIFE

50,000 BR. HRS

OPERATING TEMPERATURE

0°   to +60°  C

PROTECTIONS FOR DRIVER CIRCUIT

Surge Protection, Output short circuit Protection, Over Current Protection, Over Voltage Protection

WEIGHT

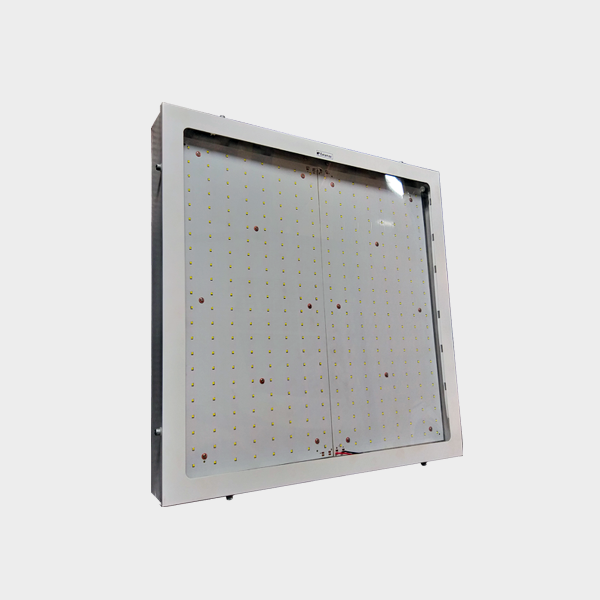

surface-mounted-clean-room-fixtures-1x1
request-quote

Product description


Luminaire type
LED surface-mounted ceiling luminaire with clear polycarbonate / toughened glass.

Applications
The luminary can be used for lighting in chemical industries, pharmaceutical industries, food industries, etc. where close type of fittings are required.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
MOC of optics is clear polycarbonate or toughened glass.

LED system
Luminaire luminous flux 2400 lm, luminaire wattage 20 W, luminous efficiency of luminaire 120 lm/W, correlated colour temperature (CCT) 3000 K-6500K, general colour rendering index (CRI) Ra > 80, long life > 50000 burning hours.

Luminaire body
Fitting housing in sheet steel with powder coating.
