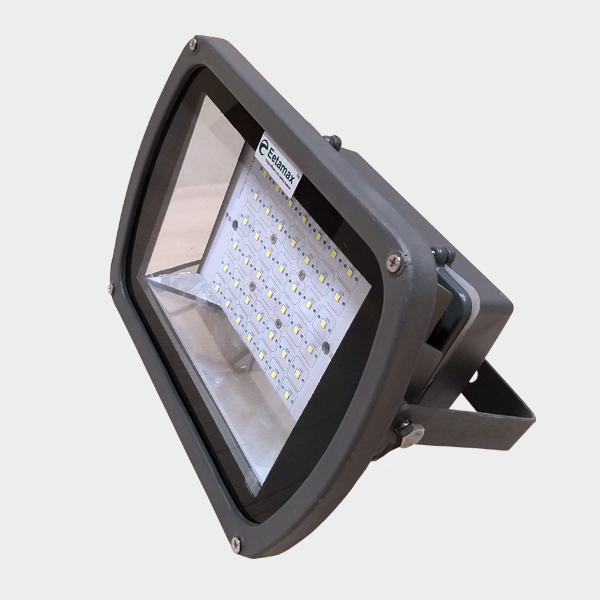

EELS 30W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
30 Watts |
INITIAL LUMENS |
3600 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60°C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over Load Protection, Over Voltage Protection |
WEIGHT |
2.2 kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 3600 lm, luminairewattage 30W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 40W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
40 Watts |
INITIAL LUMENS |
4800 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60°C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over Load Protection, Over Voltage Protection |
WEIGHT |
2.2 kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 4800 lm, luminairewattage 40W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.

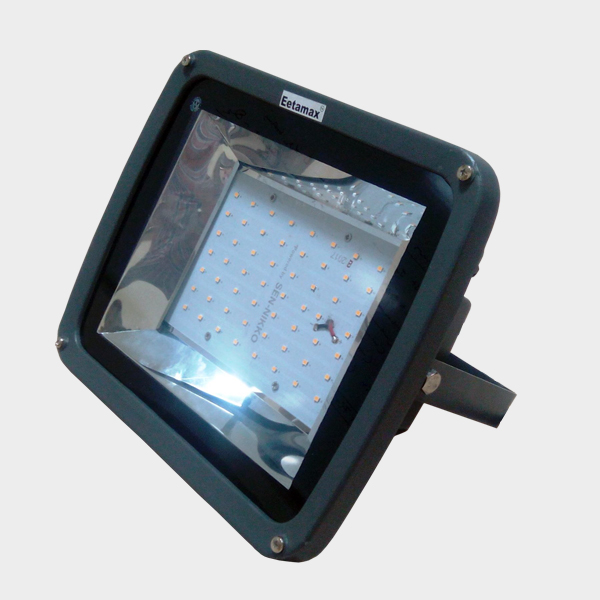

EELS 50W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
50 Watts |
INITIAL LUMENS |
6000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60°C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over Load Protection, Over Voltage Protection |
WEIGHT |
2.890 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 6000 lm, luminairewattage 50W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 60W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
60 Watts |
INITIAL LUMENS |
7200 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60°C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over Load Protection, Over Voltage Protection |
WEIGHT |
2.890 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 7200 lm, luminairewattage 60W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.

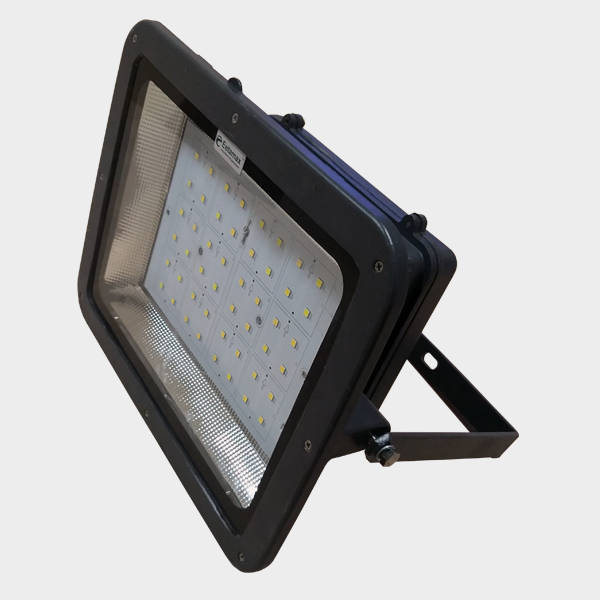

EELS 80W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
80 Watts |
INITIAL LUMENS |
9600 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60°C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over load Protection, over voltage protection. |
WEIGHT |
6.650 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 9600 lm, luminairewattage 80W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 100W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
100 Watts |
INITIAL LUMENS |
12000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over load Protection, over voltage protection. |
WEIGHT |
6.650 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 12000 lm, luminairewattage 100W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 120W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
120 Watts |
INITIAL LUMENS |
14400 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60° C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over load Protection, over voltage protection. |
WEIGHT |
6.650 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 14400 lm, luminairewattage 120W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 150W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
150 Watts |
INITIAL LUMENS |
18000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60°C |
PROTECTIONS FOR DRIVER CIRCUIT |
Surge Protection, Output short circuit protection, Over Load Protection, Over Voltage Protection |
WEIGHT |
6.650 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 18000 lm, luminairewattage 150W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.

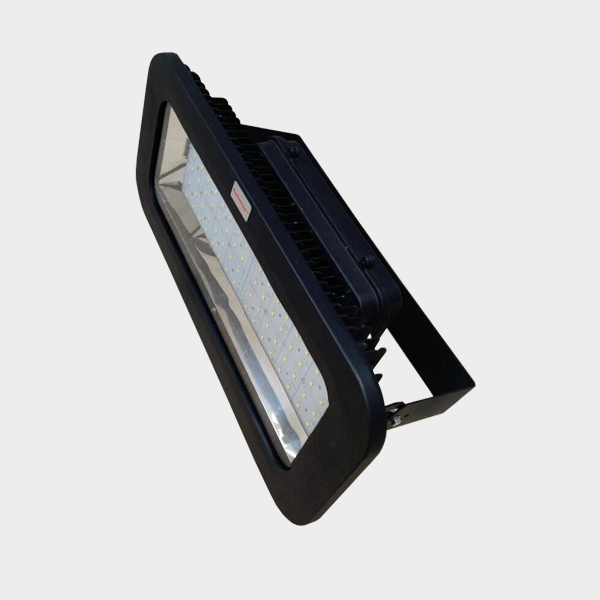

EELS 200W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
200 Watts |
INITIAL LUMENS |
24000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60° |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection, Over Load Protection, Over Voltage Protection. |
WEIGHT |
13 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 24000 lm, luminairewattage 200W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 240W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
240 Watts |
INITIAL LUMENS |
28800 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60° |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection, Over Load Protection, Over Voltage Protection. |
WEIGHT |
13 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 28800 lm, luminairewattage 240W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
EELS 300W ML FL with SPD
TECHNICAL PARAMETERS
POWER SUPPLY |
Constant current with P.F > 0.98 & THD < 10% |
INPUT VOLTAGE |
100 V - 300 V AC, 50 Hz |
LIGHT SOURCE |
SMD LED |
TOTAL WATTAGE |
300 Watts |
INITIAL LUMENS |
36000 Lumens |
LUMENS / WATT |
120 Lm / Watts |
COLOUR TEMPERATURE |
3000K – 6500K |
CRI |
>70 |
LIFE |
50,000 BR. HRS |
OPERATING TEMPERATURE |
-20° to +60° |
PROTECTIONS FOR DRIVER CIRCUIT |
Thermal Protection + Output short circuit protection, Over Load Protection, Over Voltage Protection. |
WEIGHT |
13 Kg |
Product description
Luminaire type
A luminaire for general area lighting, the lighting by projection of the whole of a scene or subject to an illuminance significantly greater than that of its surroundings. A flood-light may be for either exterior orinteri or use or for both.
Applications
Small / medium open areas, architectural & building facade lighting, security lighting, lighting of industrial & external storage areas, industrial outdoor areas, ports & container terminals etc.
Mounting methods
Cradle is provided for suspending in flood light luminaries in various angles.
Optical system
N.A.
LED system
Luminaire luminous flux 36000 lm, luminairewattage 300W, luminous efficiency of luminaire 120 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.
Luminaire body
Aluminium die casting with separate driver box. Cable brass gland PG7 is provided at cable entry for maintaining ingress protection.
